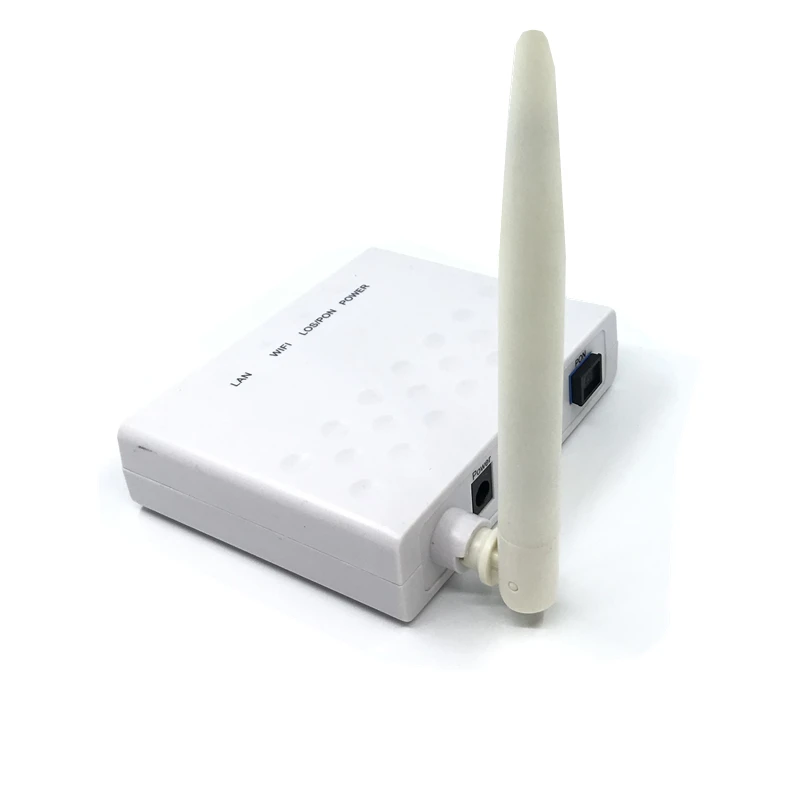

Fiber Transceiver 1GE-WIFI E/GPON ONU FTTO Light Cat Regulator Single 1000M LAN Port OLT1.25/2.5G +2.4GWIFI Chipset Fiber to the Home
Overview
1.E/GPON-ONU single-user ONU is designed for ONU in deferent FTTH solutions by MEIBAI,The carrier-class FTTH application provides date service access.GPON-ONU adopts high-performance and low-consumption chips, and supports CTC 3.0 interconnection and interworking standard of China Telecom. With the help of NGBN View NMS, it can provide subscribers with abundant services, and totally meet the needs of carrier-class FTTH devices.
2.E/GPON ONU is designed by ZTE chipset.
Functional Feature
1. Color is optional 2. Router mode supportsPPPoE/DHCP/ static IP 3. Support port-based rate limitation and bandwidth control; 4. In compliant with ITU-T G.984 Standard 5. Up to 20KM transmission Distance 6. Support data encryption, group broadcasting, port Vlan separation,etc. 7. Support Dynamic Bandwidth Allocation (DBA) 8. Support ONU auto-discovery/Link detection/remote upgrade of software; 9. Support VLAN division and user separation to avoid broadcast storm; 10. Support power-off alarm function ,easy for link problem detection 11.Support broadcasting storm resistance function 12.Support ACL and SNMP to configure data packet filter flexibly 13. Specialized design for system breakdown prevention to maintain stable system 14. Support software online upgrading EMS network management based on SNMP ,convenient for maintenance Hardware Specification
|
Item |
Parameter |
|
|

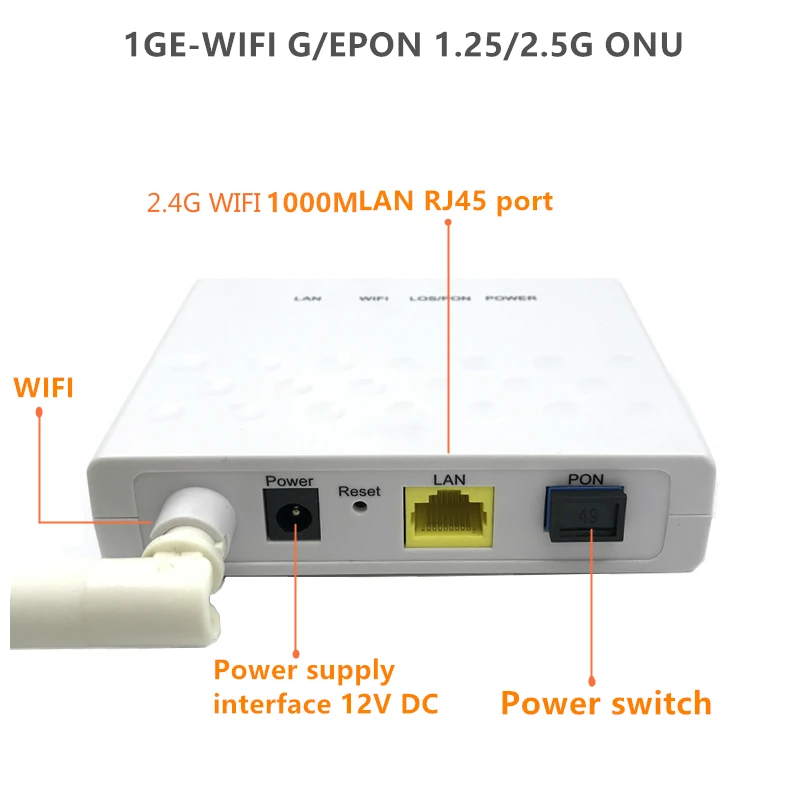

Interface |
PON Interface |
1 E/GPON optical interface Meet Class B+ standard Upstream 2.5Gbps; downstream its 2.488Gbps split ratio:1:64 Transmission distance 20KM |
|
User Ethernet |
1*10/100/1000Mauto-negotiation |
|
|
Power Interface |
12V DC Power supply |
|
|
Performance Parameters |
PON Optical Parameter |
Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power:0.5～+5dBm Rx Sensitivity: -27dBm Saturation Optical Power: -8dBm Connector Type: SC Optical Fiber: 9/125ɥm single-mode fiber |
|
Data Transmission |
PON Throughput: Downstream 2300Mbps; Upstream 1110Mbps， Packet Loss Ratio:<1*10E-12 |
|
|
Gateway |
Router mode supportsPPPoE/DHCP/ static IP WAN support Routerand Bridge mode WAN support Internet、VoIP、IPTV、TR069 LAN supports DHCP and static IP Support NAT and NAPT Support UPnP |
|
|
Business |
Layer 2 wire speed switching Support VLAN TAG/UNTAG，VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast |
|
|
Network Management |
Management Mode |
Support ITU-T G.984 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
|
Management |
Status monitor, Configuration management, Alarm management, |
|
|

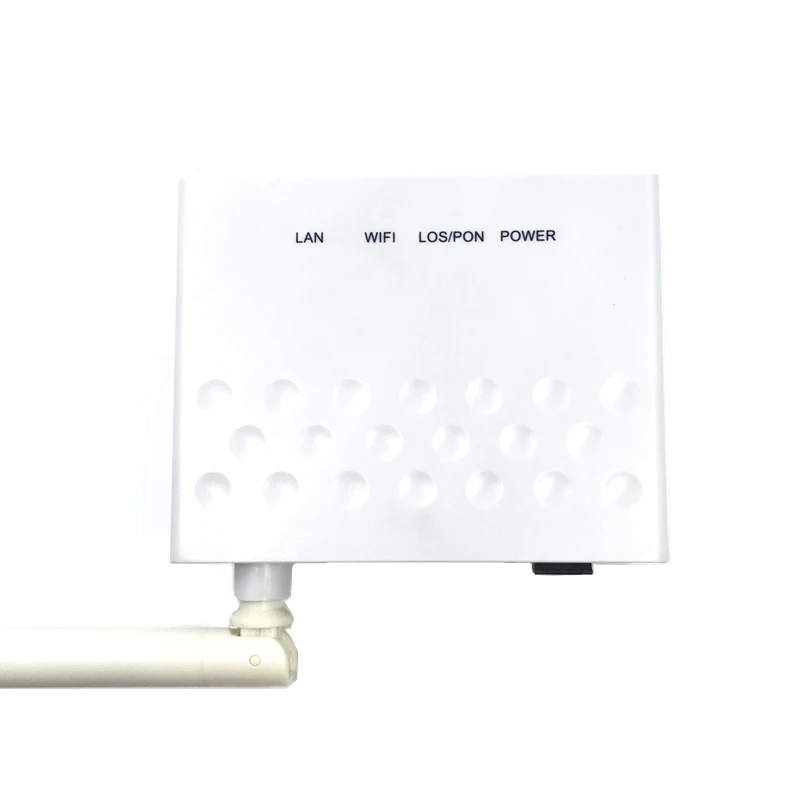

Indicator |
LED Indicator |
PWR: Power up or down SYS: System instructions LOS: Optical Link Status PON：ONU Registered LINK/ACT: Link Status of Ethernet Interface |
|
Physical Features |
Shell |
Plastic casing |
|
Power |
External 12V 0.5A AC/DC power supply adapter Power consumption: <2W（FD101HC）,<2.3W(FD111HC) |
|
|
Physical |
Item Dimension：120mm(L) x 80mm(W) x 26mm (H) Item weight：0.1kg |
|
|
Environmental |
Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing) |
|
Application
1.Typical Solution：FTTH、FTTB、PON+EOC
2. Typical Business：INTERNET、IPTV、VOD、IP Camera

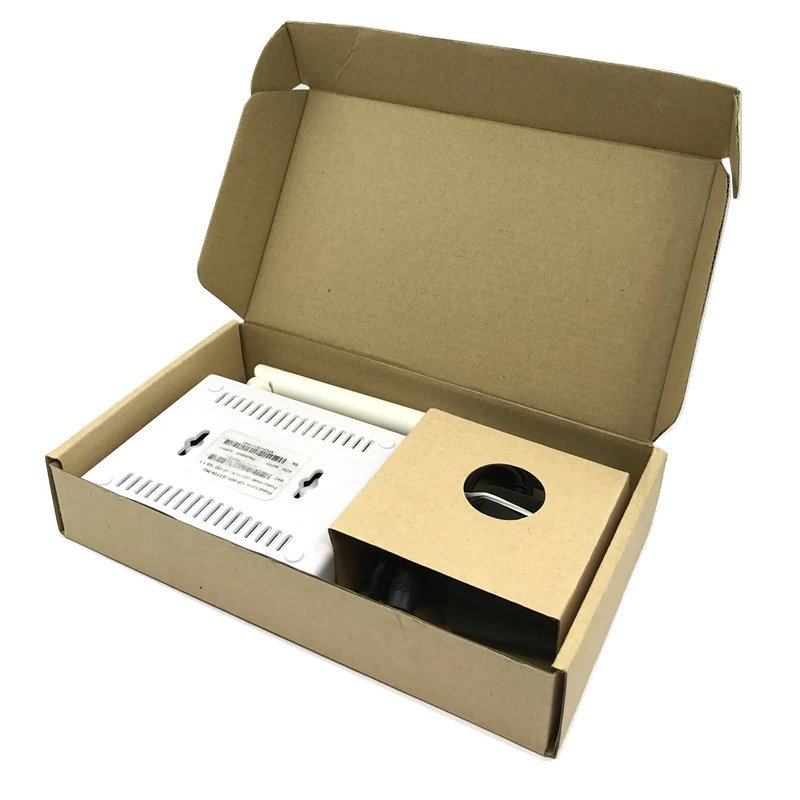

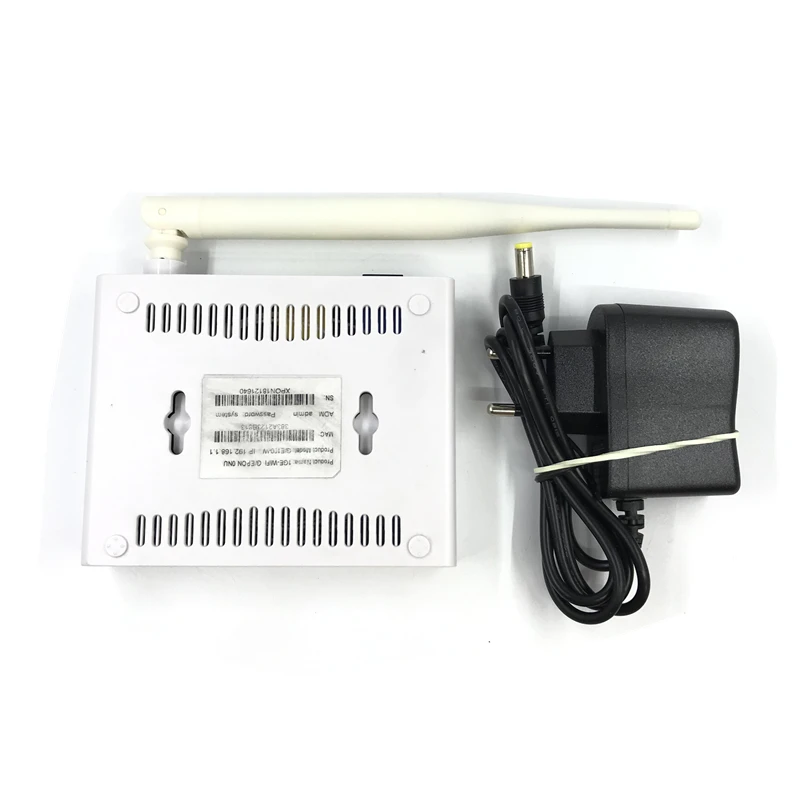

Package includes:
1.E/GPON ONU*1PCS
2.Power Adapter*1PCS
