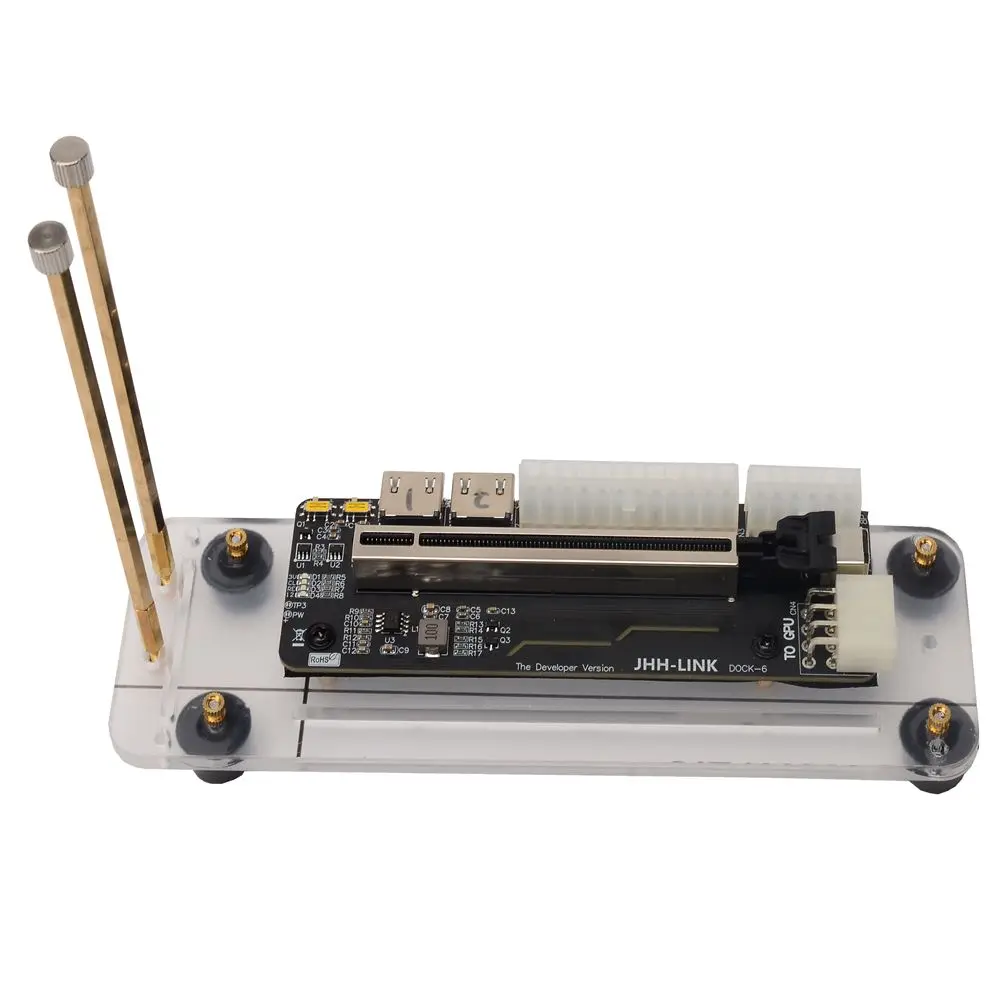

PCIE3.0 TB3 к x16 внешний кабель расширения графической карты, кронштейн eGPU, адаптер подъемника Thunderbolt 3 Desktop Riser ITX STX NUC GTX1080ti.

PCIE3.0 TB3 к x16 внешний кабель расширения графической карты кронштейн eGPU адаптер подъемника Thunderbolt 3 Desktop Riser ITX STX NUC GTX1080ti.

Brand: ADT-LINK

Product Model: DOCK-TB3

Product Name: Graphics card external adapter board extension cable

Wire length: 25cm, 50cm (other length bulk orders can be customized)

Graphics card compatibility: support for new graphics cards shipped after 2015 (old graphics cards shipped before 2014 are not supported)

Motherboard compatibility: ITX/STX motherboard, NUC, Only supports thunderbolt3, Thunderbolt 3 does not support USB interface

Power Description: The model that supports the power supply is DELL 12V/18A/220W power supply, or the standard ATX power supply. Please prepare or purchase the power separately.

Bandwidth speed: PCIe3.0x4 (32G/s)

Note:

1. We highly recommend to use it for PC desktop, not for laptop.There is low success rate for laptop due to the Incompatibility, especially for HP, Dell, Lenovo)

2.Professional use is highly recommended. This item don't include user manual, and we don't support technical support, pls take it into account before placing the order.

3.If the BIOS is not recognized, please update the BIOS to the latest versionfrom the official website of your motherboard.

4.System support: Only supports Win10 1909 and later version.

EMI Shielding with Conducting Polymer

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Power Supply Description:

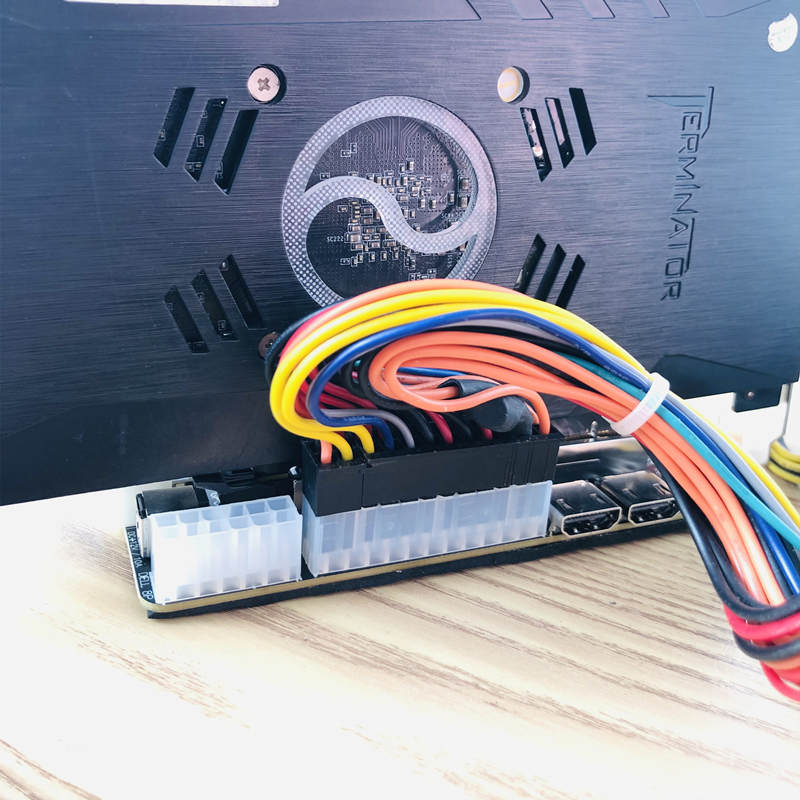

Supporting power supply is DELL 8-pin 12V/18A/220W, or standard PSU power supply. The power supply should be prepared by the buyer or purchased separately.

Precautions:

In addition, the connected equipment is a DIY device, and a certain hardware knowledge is required to modify it.

1. The shell is being optimized, and the shell can be purchased separately after it is put on the shelf

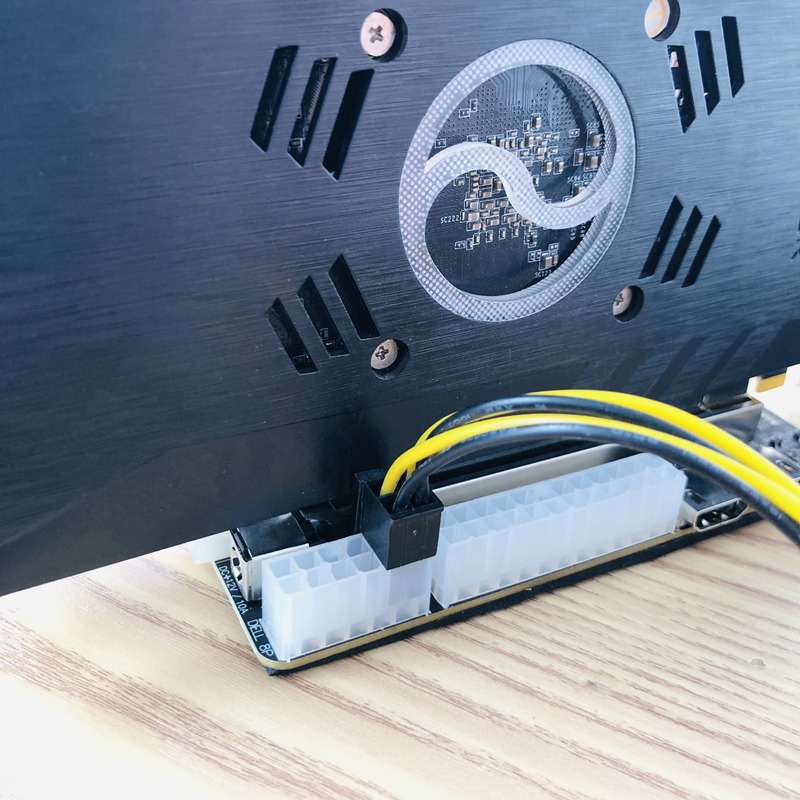

2. Because the power supply interface is a vertical design, the space is compact, and the vest on the back of the graphics card is more than 5mm, please contact customer service to purchase the horizontal power interface version

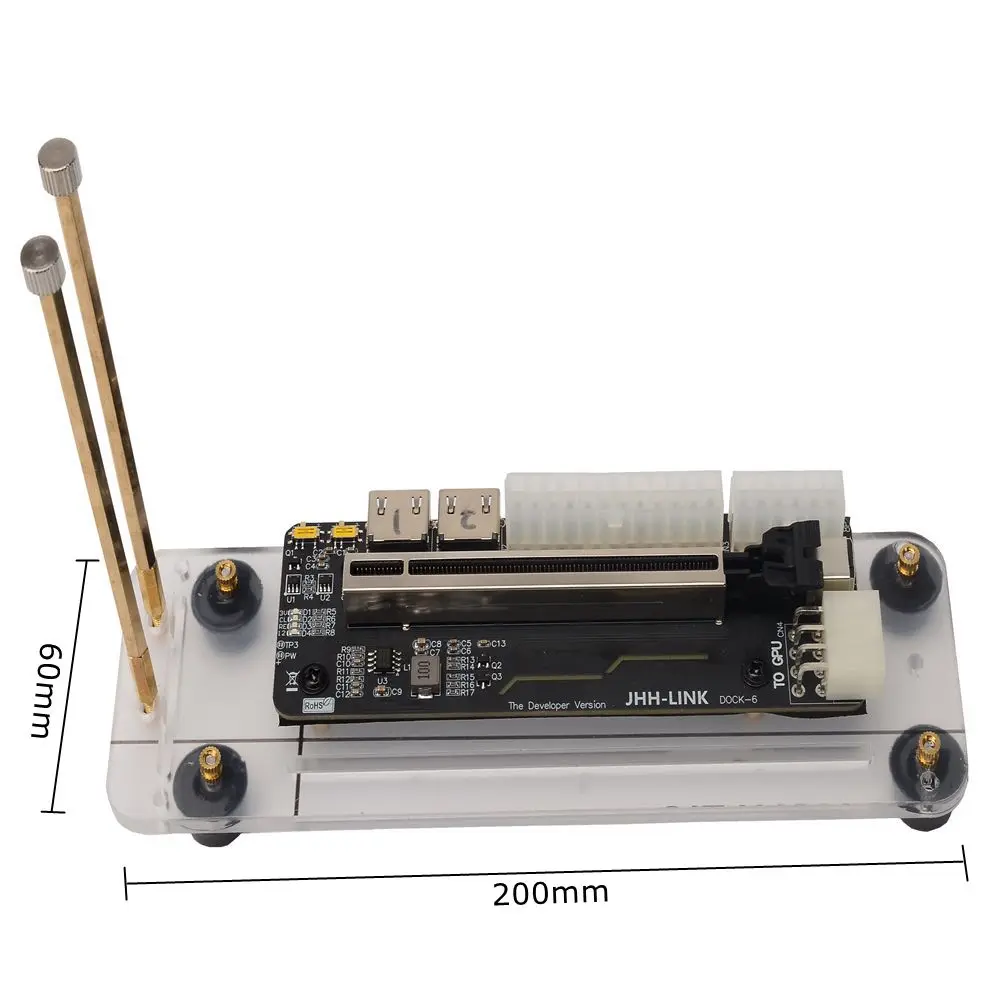

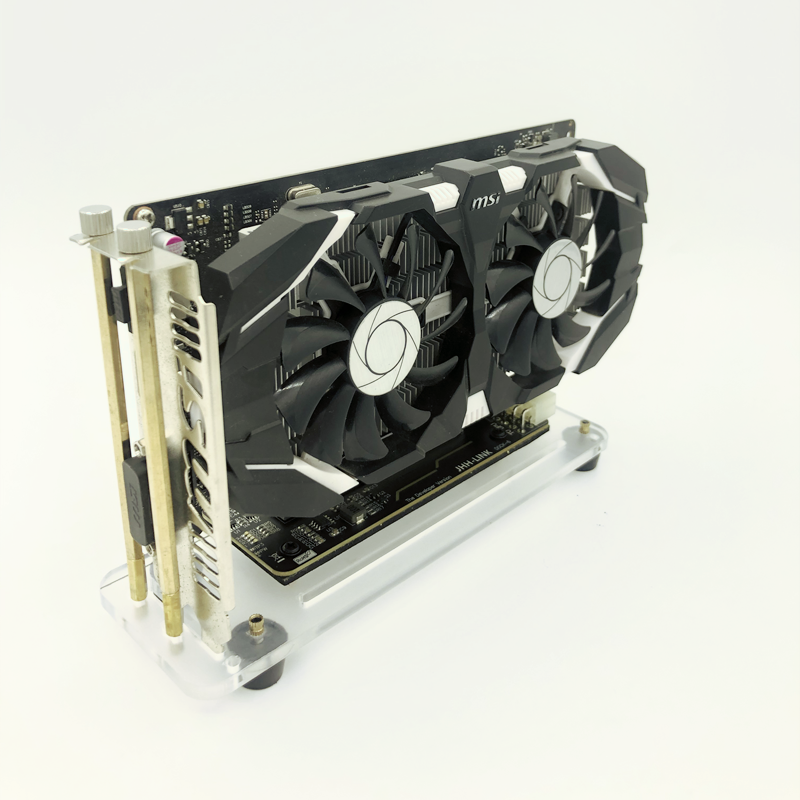

3. Due to design problems of the metal bracket, the graphics card is limited to 44mm in thickness

4. The DC power supply is forced to power on, and the external device will still be powered when it is turned off. The maximum DC power supply is 120W. Please pay attention to the power consumption of the external device.

5. The external graphics card takes precedence over the external screen. The internal screen may be limited by the CPU processing method, causing greater loss. At present, the 10th generation CPU is more friendly to the PCIE channel and Thunderbolt interface, and the internal screen performance is considerable.

6. An 8pin to dual 6+2pin graphics card power supply adapter cable worth 16 yuan for external devices

Recommended plan:

A notebook or host with an nvme solid-state drive interface can be disassembled to connect the adapter cable, and the external device can be detached without disassembling the main device.

NUC host (square NUC, Skeleton Canyon, Canyon of Hades, etc.) external transfer graphics card or Gigabit 10 Gigabit network card for soft routing, and the network card can be powered by DC power.

Notebook devices (MAC) with Thunderbolt 3 (non-type c) can be combined into an external device by means of a Raiden 3 hard disk box bridge. Thunderbolt 3 or Thunderbolt 4 is highly compatible and easy to operate.

Regarding compatibility, you can learn from each other. In theory, the compatibility probability of the nvme interface is relatively high. Regarding the system version, if the external device is not recognized during the initial installation, you can download the latest win10 system from the "I Tell You" website. After identifying the external device, you need to download the latest graphics card driver from the graphics card official website.

This device is switched to an external screen to maximize 95% of the performance of the graphics card (PCIE X4 3.0). The MAC internal screen has GPU acceleration options, which can be used for internal screens.

Please look forward to the built-in power supply version for others.
