Набор паяльника с ЖК-дисплеем мощностью 80 Вт с переключателем и регулируемой температурой, комплект инструментов для сварки для домашнего использования или ремонта.

Набор паяльника с ЖК-дисплеем мощностью 80 Вт переключателем и регулируемой температурой комплект инструментов для сварки домашнего использования или ремонта.

Description

80W LCD Digital Soldering Iron Kit Set with Switch Button Temperature Ddjustable Welding Tool Accessories for Home DIY/Repair

Specifications:
Product Name:  Electric Soldering Iron with switch button
Soldering Iron Length:about  2.5in/6.5cm
Cable Length: About 57in/145cm
Working voltage: US 110V / EU 220V /CN 220V/UK 220V
Power: About 80W
Warm-up time: 10-20 seconds
Preheating temperature: About 180℃-520℃
Iron tips:Use 900 series soldering iron tip, plug-in heating core
Alarm: EA0 heating element open circuit

Features:
1. Enhanced ceramic heater takes only 10 seconds to preheat
2. Adjustable temperature, minimum 180 degrees, maximum 520 degrees
3. The whole body of the product can be disassembled and replaced easily
4.Had an "on/off" switch

C/F conversion:
Press the + and-keys at the same time without turning on the machine, and don't let go.
Turn on the power at this time, release the two buttons after seeing the LCD display, and then enter the setting menu,
C or F is displayed at this time. Press + key to select C/F, press two keys at the same time to exit the setting.
In the setting state, stop heating, and start heating after exiting.
Set temperature operation:
1: Press the + key once to increase the temperature by 5 degrees, long press + the temperature to increase continuously.
2: Press once to decrease the temperature by 5 degrees, long press the temperature to decrease continuously.
3: When there is no key for 3 seconds, the newly set temperature will be memorized, and the temperature will be kept at the next startup.
4: When the heating core reaches the set temperature about 30~50S, the temperature of the soldering iron tip can reach the set value.
Calibration operation: (Generally choose 320 degree calibration.)
1: Put the soldering iron tip on the thermometer after powering on for 90S, and add solder to the soldering iron tip to make the soldering iron tip fully contact the thermocouple.
2: Wait 2~4s after the thermometer shows that the temperature is stable, and then record the temperature of the thermometer. 3: Remove the soldering iron of the thermometer and press + and-at the same time to enter the temperature calibration interface.
4: Input adjustment amount For example: set the temperature to 290C, the measured temperature is 282, and then press the LCD to display 08C, Set the temperature to 290C and the measured temperature is 300. Then press the LCD display to -10C,
5: Press + and-at t he same time to exit the temperature calibration interface.

Black 1pcs
Electric soldering iron*1

Set 1
Elec tric solde ring iron*1
Tips*5

Set 2
Electric soldering iron*1
Stand*1

Set 3
Electric soldering iron*1
Stand*1
Tips*5


Set 4
Electric soldering iron*1
Stand*1
Tips*5
Wire stripper*1
Connecting wire*2


Set 5
Electric soldering iron*1
Stand*1
Tips*5
Wire stripper*1
Connecting wire*2
Tweezers*1


Set 6
Electric soldering iron*1
Stand*1
Tips*5
Wire stripper*1
Connecting wire*2
Tweezers*1
0.8mm 30g tin wire*1

Set 7
Electric soldering iron*1
Stand*1
Tips*5
Wire stripper*1
Connecting wire*2
Tweezers*1
0.8mm 30g tin wire*1
Heating element*1

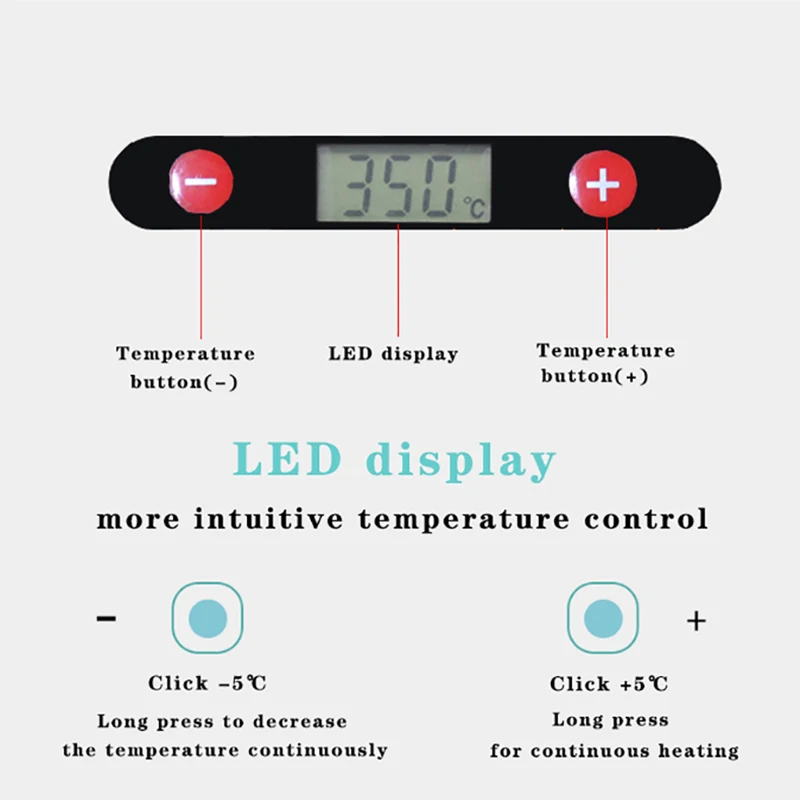

LED display

more intuitive temperature control

Intelligent digital display chip

Intelligent constant temperature control,when the soldering iron 1s heated to the specified te ,it will antomatically stop heatingmperature,During use the flixed temperature will collde with the air,and the temperature will decrease, After the chip is indnced,the soldering iron will heat up again And reach the specified temperature

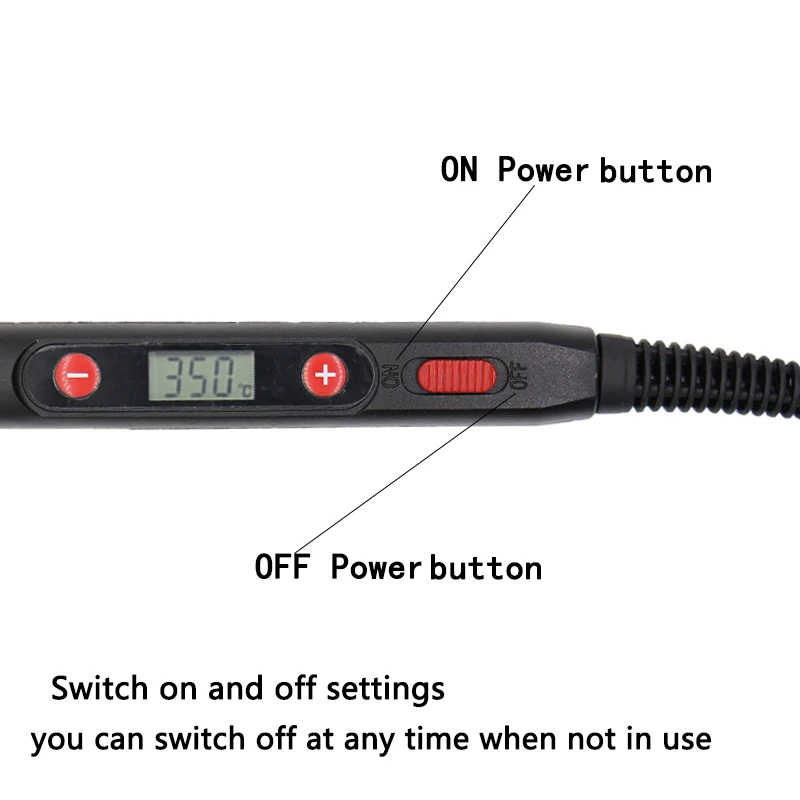

C/F conversion // On/Off Power button
In the absence of power, press the + button and the - button at the same time until the power on and the LED light then,Then enter the setting menu, C or F will be displayed. Press + button to select C/F, and press "+" and "-"at the same time to exit the setting. In the setting state, stop heating and start heating after exit

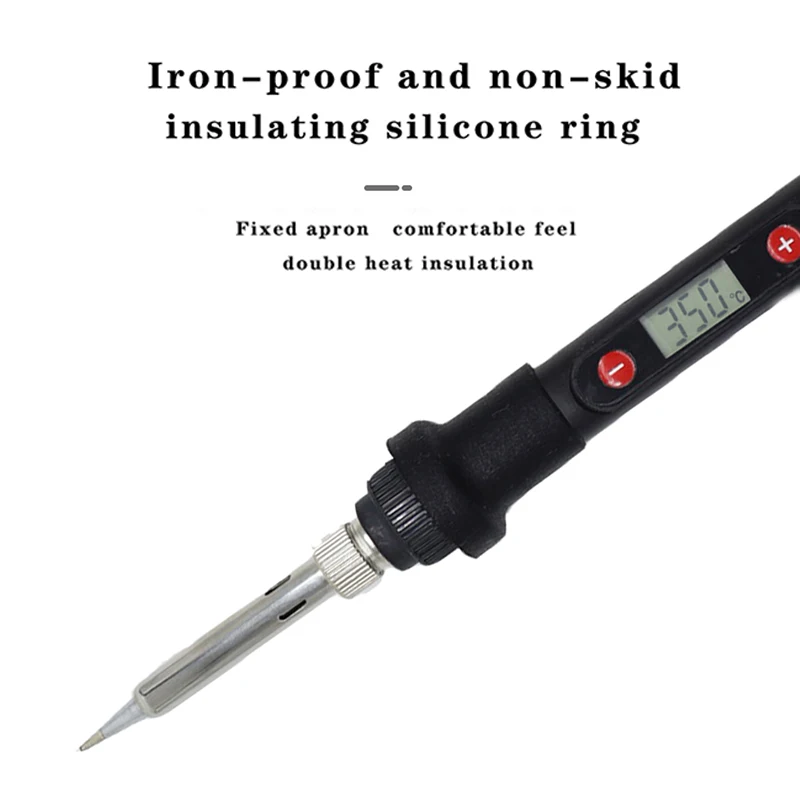

Iron-proof and non-skid insulating silicone ring

Pluggable heating element, easy to replace parts

Ceramic internal heating type heating core, heating is more stable, rapid heating

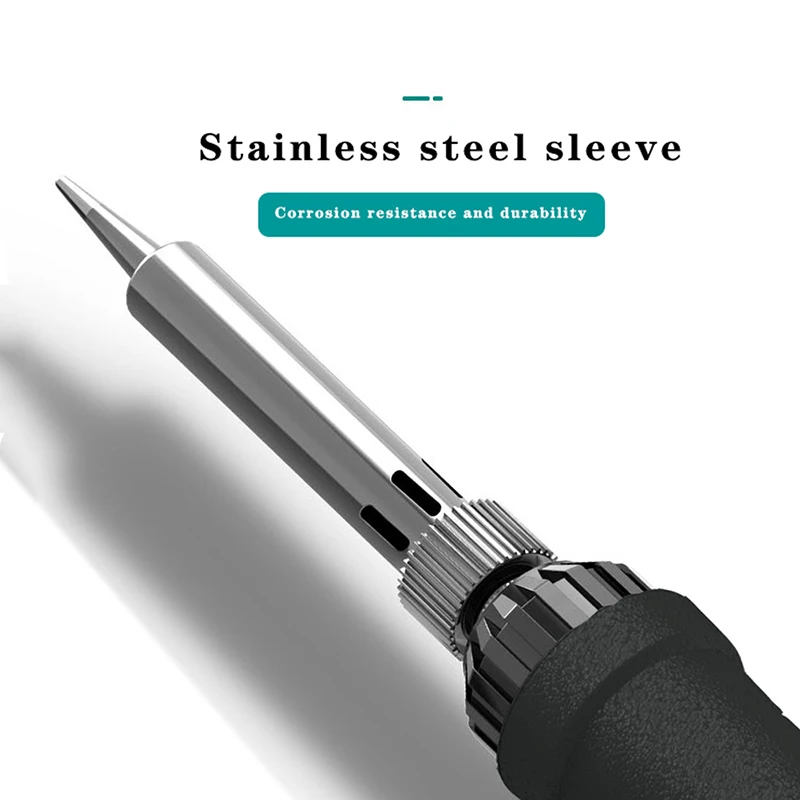

Stainless steel casing, more durable

Lead-free soldering head

Fast heat conduction, easy to tin, anti-oxidation
