Dear Friends,

Thank you for visiting our shop,we are the factory with 9years experience in LED field, for all the products we sell in this shop is with quality guarantee, they are all with CE,RoHs Certification.

About shipping cost, please contact us by mail or leave us a message online, we will adjust shipping cost after receing your order online, and commonly the shipping cost is much lower than it is shown online system.

Thank you for your support and wish you a nice shopping.

                                                                                            DARSHAN LIGHTNG GROUP

High power,good quality LED RGB Fountain light Specification

1. Item No.: DS-10-36-27W-RGB

2. LED quantity: 9X3W RGB tri-chip (3in1)

3. Working voltage: 12V DC,constant voltage,PWM control

4. Color Range : RGB  full color

5. IP Rating: IP68

6. Cable size: 4-PIN open wire, 12V V+, R,G,B

7. Working Accessory: Single color version need to work with 12V DC LED power supply,  RGB version need to work with LED RGB controller 12V DC + LED power supply 12V DC

8. Lamp Size: Diameter 142 X H68mm, inner Ring Size: 32mm

9. LED chip brand: EDISON

10. Warranty: 2-Years

11. Inner Ring Size: D=32mm, Inner ring size can be change to D26mm

High power LED RGB fountain light feature

1.Strong stainless steel fitting, SL304.

2. High bright RGB 3in1 LED, EDISON, with super color mixture effect. special design Honeycomb Lens, perfect perfomance without light gap.

3. Working in constant voltage, DMX compitable with LED RGB controller.4-Wire connection, 12V V+, R,G,B

4. IP68 structure, suitable for both underwater and outdoor application.

About installation:

1. Single color version is available in low voltage 12V DC, constant voltage, for low voltage need to work with 12V LED power supply,  the lamp will have 2-PIN open wire, 12V V+, 12V V-.

2. Please check the power supply is 12V DC before you connect to it, the wrong voltage input will damage the light.

4. RGB is working in 12V DC, constant voltage, it need to work with 12V LED RGB controller and 12V LED power supply,  RGB light is with 4-PIN Open wire, 12V V+, R,G,B, commonly the light wire color is Black-- 12V V+, Brown wire-- Red color, Blue wire-- Blue color, Green wire-- Green color

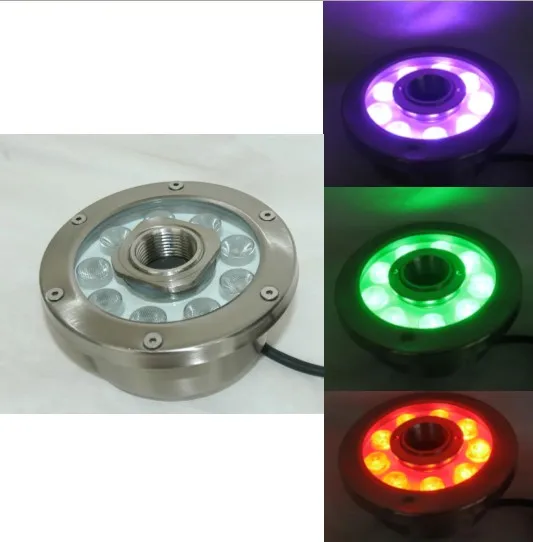

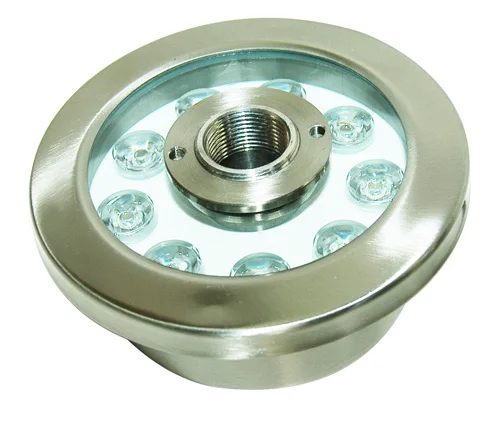

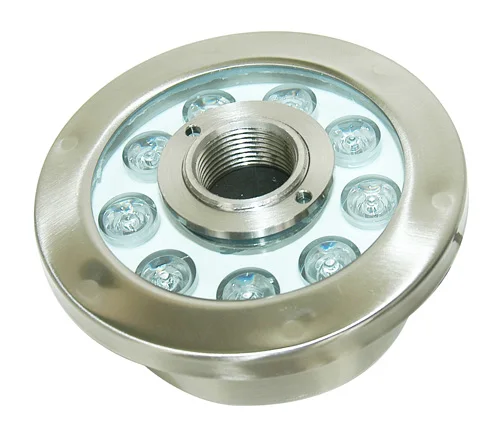

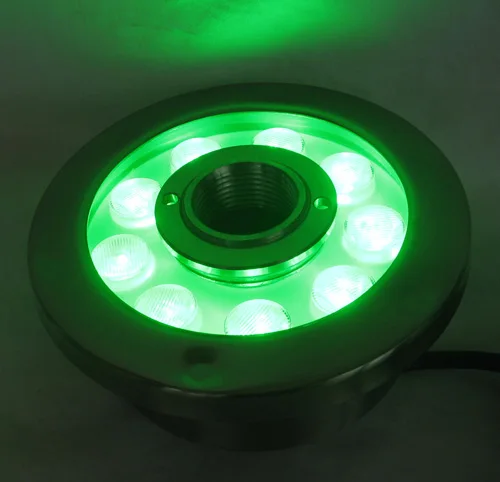

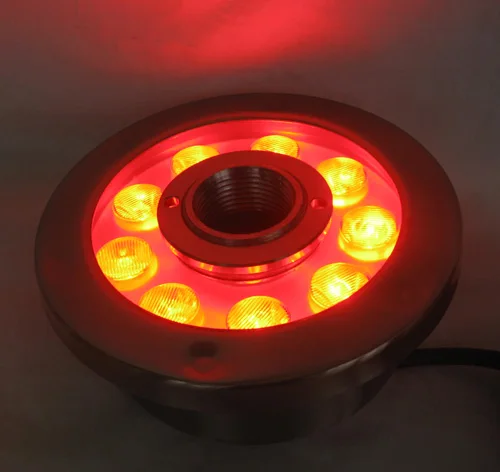

Product Picture:

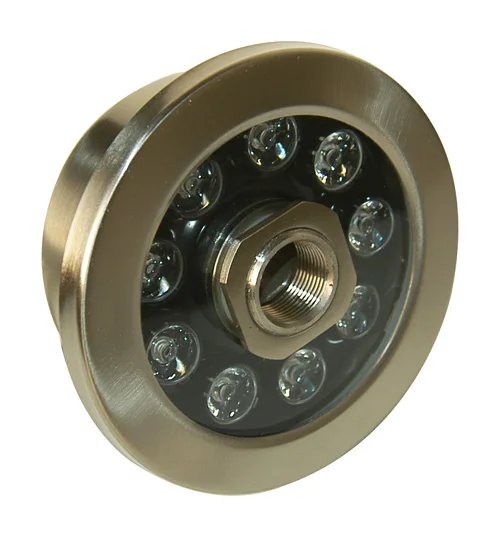

LED Fountain light Back-view

DS-10-36 Size show

DS-10-36 is available in two waterproof glue.

1. Black glue

2. White Glue

These two kinds of Waterproof glue are with the same function, they protect the LED chips and PCB circuit inside,and also with the heat guid function.

Customer can choose the White glue or Black glue.

Without special notice with the order, all lights will be sent with the BLACK GLUE

DS-10-36 is available in two kinds of Cover.

1. Flat cover  ( no screw on the cover ): for Flat cover, there will be some screw hole on the cover.

2. Screw cover:  Screw can be seen on the cover

Without special notice with the order, all lights will be sent with the FLAT COVER

Installation Show

Project Pictures

About RGB 3in1 LED products

1. RGB 3in1 LED mean to use Red,Blue,Green,three colors in one LEDs, so when it work with one RGB controller ( DMX console ), it can have perfect color mixture effect. NOT ONLY the RGB light, but people can also see the fantastic purple and perfect White color.

2. It is very ideal for high class entertainment place, building walls, or garden,or parking,or street light ,or stage light decoration.

3. RGB 3in1 LED  is be with special design Honeycomb Lens, or people will say, I want clear Lens, I want 15D,30Degree Lens, personally speaking, no problem, you can name to use any Lens you want to use, but in our experience, honeycomb Lens can have the best color mixture effect than any other 15D or 30D Lens

We take one 6*3W RGB & 6*1W RGB for example,to show the difference.

About DARSHAN LIGHTING Products

We have mainly two range LED products, Outdoor LED products, Indoor LED products.

Outdoor LED products is our main and strong products, including LED underwater light, LED underground light, LED wall washer, we have our own factory to make the empty housing, so if customer need only the empty housing ( without LEDs, PCBs…) that is also OK.

Indoor LED products including LED downlight, LED spotlight,  for indoor LED products, we mainly make assembling in our factory, LED chip brand can be used following customer’s design.

About DARSHAN Exhibition

We attend two exhibition.

1.      Hongkong International Lighting Fair ( Autum Version ), Hongkong 2014-10-27~ 2014-10-31. stand No.: Hall 5, 5B-C08.

2.      Frankfurt Lighting & Building Fair, Frankfurt,Germany ( every two years), 2014-03-30~2014-04-04, Stand No. Hall 10, 10.1E61G

 Meeting  with  customer

About DARSHAN LIGHTING  FACTORY

DARSHAN Lighting Factory was established from year 2005, with rich experience in lighting field.With strong technology strength,advanced production technique and complete inspection equipments,our company manufactures qualified products up to national and international standards.

Our products are largely exported to Europe,America.South Korea,and so on.These products are extensively applied to decorations in bridge,city outline,city night view engieering,and home decoration.WE have an excellent teamwork,professional management,modern production line,advanced crafts and equipments.

We introduce ISO9001:2000 quality managing system which guarantees for the rapid growing and strengthening,products are with CE RoHs Ip68 certification for specially EU market.

Darshan improves the reliability and stabilization of products and achieves bright future by strong technique,reasonable design and continual innovation.We will make effort to achieve more beautiful and bright future by our excellent service and original design. Creating the first quality LED illumination brand in China is always our goal.

About DARSHAN Certification

For most of our products are with CE,RoHs certification, for LED underwater light, we have IP68 certification.  LED underground light are with IP67.

We also have UL certification for LED RGB tube which was used for building, bridge lighting decoration. We have quite a lot Lighting project in Chinese Domestic market using this kind of LED RGB tube.
