Best selling 220v ac on grid tie wind inverter,home inverter 1000w,

24v wind turbine generator

 For AC Output Wind Turbine

 Build In Dump Load Controller

 Build In High Wind Protection

 Build In LCD Display

 Build In Electric Brake System

Preface

The grid tie inverter can transfer wind energy from wind generators directly in to the home grid using no extra equipment. It can be connected to any outlet (conventional network) in the home. The grid ­tie inverter controls the phase and the frequency and voltage of the power generated by the wind generator. It produces a pure sine wave and matches that of the grid.

This model grid­ tie has designed for wind turbines that put out 3 phases AC voltage. It can maintain the rotating peed of the wind turbine and keep the voltage from the wind turbine always at the range of the rated range of the grid tie inverter. It also has a high voltage protection function, when the wind is too big, and the dump load controlling system can’t keep the out put voltage from the wind turbine, the controller will disconnect its elf from the wind turbine, so it is very safe to be used.

Layout

On the Terminal Panel of the inverter, there are 5 terminals, 3 terminals will be connected to the AC output from the wind turbine, and 2 black terminals will be connected to dump load resistors. There are 4 LED indicators, 3 green indicators and 1 red indicator, 3 green LED indicators will start to cycle from left to right when the grid and AC input supply is detected. This indicates the inverter is operating under normal condition. The rate of the cycling is according to how much power is being out put from the wind turbine. The more big output power is, the more fast the rate is. If there is no AC grid detected, the red LED will be on, the inverter will not put out power, this is called “Island Protection”.

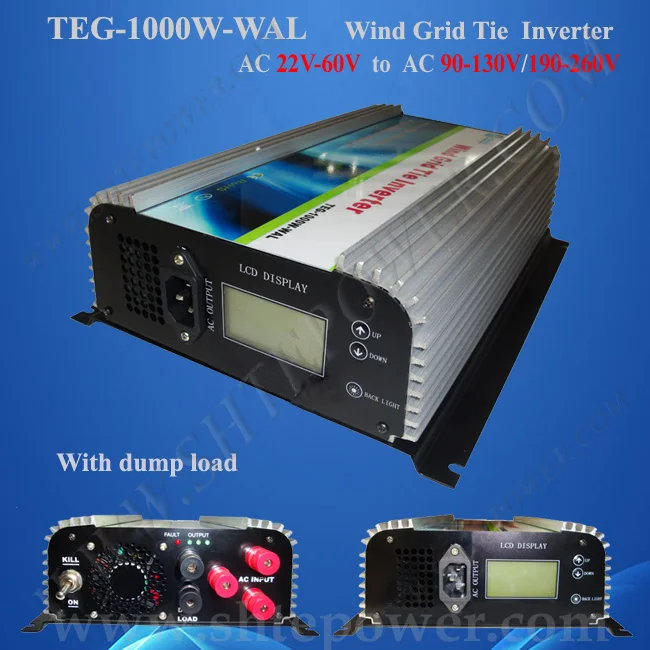

There is one switch on the panel, the function is electric brake controller, when the switch is put to “Kill” position, the electric brake function will work, this will slow down the rotation speed of the wind mill or stop the rotation of the wind mill, when the switch is put to “ON” position, then the inverter will work normally. On the LCD Panel of the inverter, there is one AC output socket, that will connect the AC output cable to home grid. The LCD display will display the grid AC voltage, current, active power and electric energy that combined to the grid.

Electrical Specifications:

1000W on grid tie inverter for wind turbine, wind power invertor

Mechanical Specifications:

Operating Temperature Range: -10 ~ 45 degrees C (Non-condensate)

LCD display Function:

1 Electric parameters measurement function (voltage, current and active power, electric energy).

2 Running time function (record load cumulative working hours).

3 Back light function.

4 Power down data save function (save the number of kWh, operation time).

5 Large screen LCD display (display voltage, current, power, active power, cumulative running time)

Key Function:

UP: Short press will display power, electricity, current and voltage in anti-sequence.

DOWN: Short press will display power, electricity, current and voltage in sequence.

BACKLIGHT: Short press will open or close back light.
