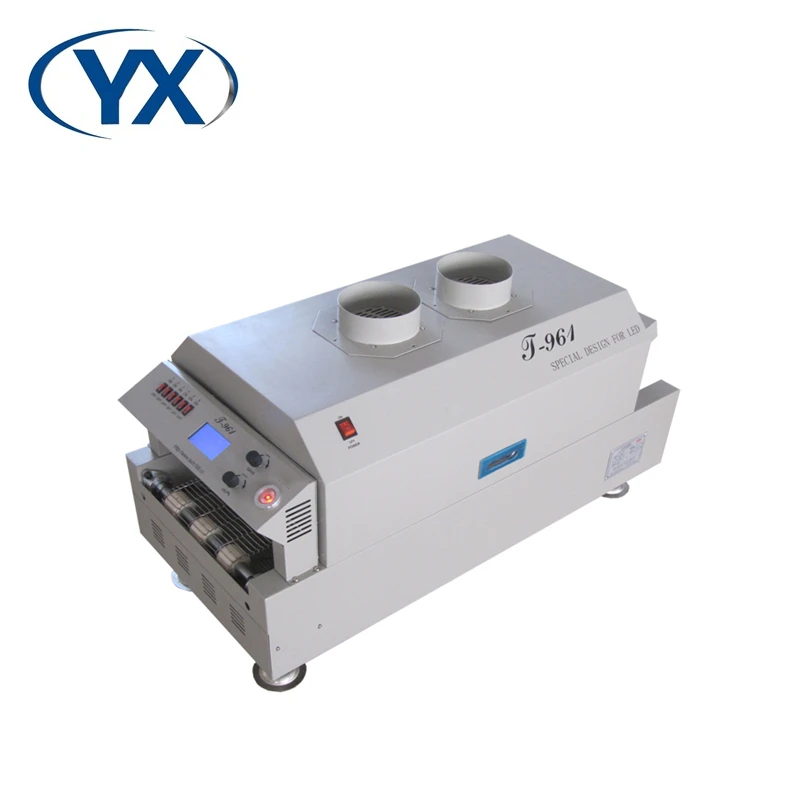

Mini SMT Reflow Oven T961   Technical parameters:   Model T-961 The heating zone quantity upper3/down3 The length of the heating zone 730mm The heating type intelligent level sirocco and rapid infrared heating The cooling zone quantity 1 Maximum width of PCB board 230mm The operation direction left right Delivery options Net transmission+chain transmission The speed of conveyer belt 0-290mm/min The power supply 220V  50/60Hz Peak power 3.5KW Heating up time Around 7mins Temperature control range Room temperature~300 Temperature control mode PID closed-loop control Temperature control accuracy ±1 PCB temperature distribution deviation ±2 Overall dimensions 1000×466×445mm Machine weight 70KG Complete machine 1 User manual 1   Features: 1. This machine selects the intelligent level sirocco and rapid infrared heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the LED and BGA components. 2. This machine is equipped with the crawlertype and six temperature area heating systems, and each temperature area uses independent PID controlling and updown heating type, can make the inside temperature more accurate and wellproportioned, just take about 7 minutes can let it heat up to the working temperature from the room temperature. 3. Intelligent temperature wave heating type, oversized capacity wave selection, have eight temperature waves can satisfy various welding technological requirements. 4. Use programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave. 5. Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature measurement more accurate, the wave more perfect. 6. Use PID intelligent temperature control technology; make the temperature control more accurately. Adopt the imported large current solid-state relay noncontact output can effectively avoid the IC or circuit board damage due to the rapid or uninterrupted warming up, make the whole welding process more scientific safety. 7. Transmission system adopt imported frequency conversion motor, PID closedloop speed, smooth operation, speed adjustable range 0-290mm/min. 8. Adopt independent wheel structure and special stainless steel strut, durable wearresisting runs smoothly, speed precision can reach ±10mm/min. 9. Independent cooling zone, to ensure the PCB board of low temperature when the required. 10. Friendly humanmachine operation interface, perfect LCD display, no need to connect with the PC, can watch the whole repairing process very clearly. 11. Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the T-960 to be easily bench positioned, transported or stored.
