Характеристики
Germany SICK KT5W-2P1116 Distance Sensor/Photoelectric Switch Sensor | Инструменты
История изменения цены
*Текущая стоимость 17 631,59 - 40 593,66 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-18-2025 | 22391.13 руб. | 22839.74 руб. | 22615 руб. |
| Jul-18-2025 | 18160.18 руб. | 18523.63 руб. | 18341.5 руб. |
| Jun-18-2025 | 22039.80 руб. | 22480.24 руб. | 22259.5 руб. |
| May-18-2025 | 21862.85 руб. | 22299.89 руб. | 22080.5 руб. |
| Apr-18-2025 | 17455.13 руб. | 17804.18 руб. | 17629.5 руб. |
| Mar-18-2025 | 21510.41 руб. | 21940.14 руб. | 21725 руб. |
| Feb-18-2025 | 21334.28 руб. | 21761.23 руб. | 21547.5 руб. |
| Jan-18-2025 | 21157.48 руб. | 21580.89 руб. | 21368.5 руб. |
Описание товара

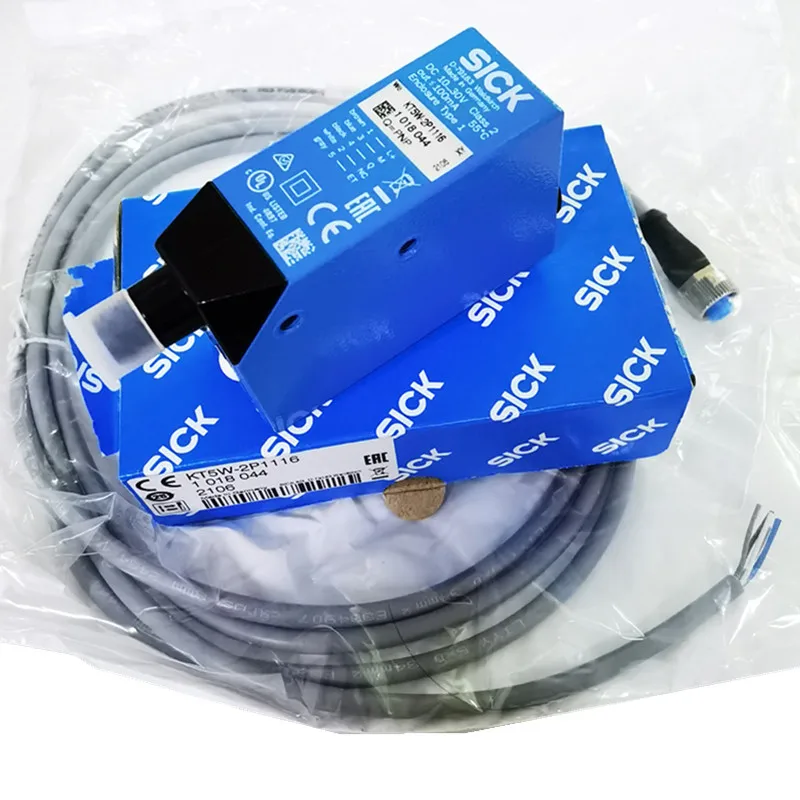

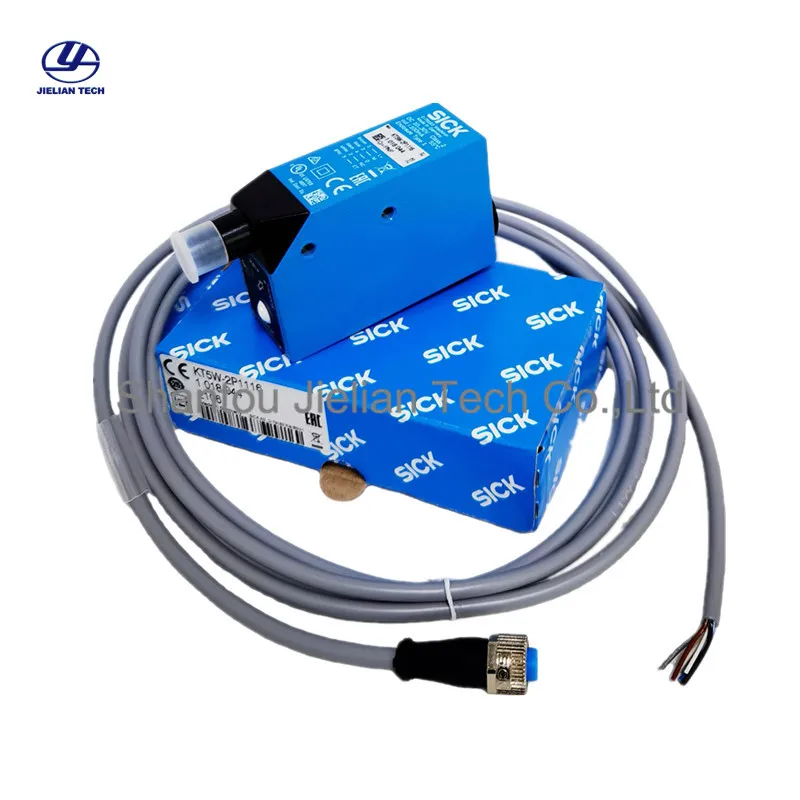

Germany SICK KT5W-2P1116 distance sensor/photoelectric switch sensor
Attention: (Yellow line as a gift)
Model : KT5W-2P1116
Product Series : KT5
Product type : Contrast sensors
Detection distance : 10mm
Shell material : Zinc diecast
Light spot size : 1.2 mm x 4.2 mm
Dimensions : 30.4 mm x 53 mm x 80 mm
Light type : LED,RGB
Output mode : PNP

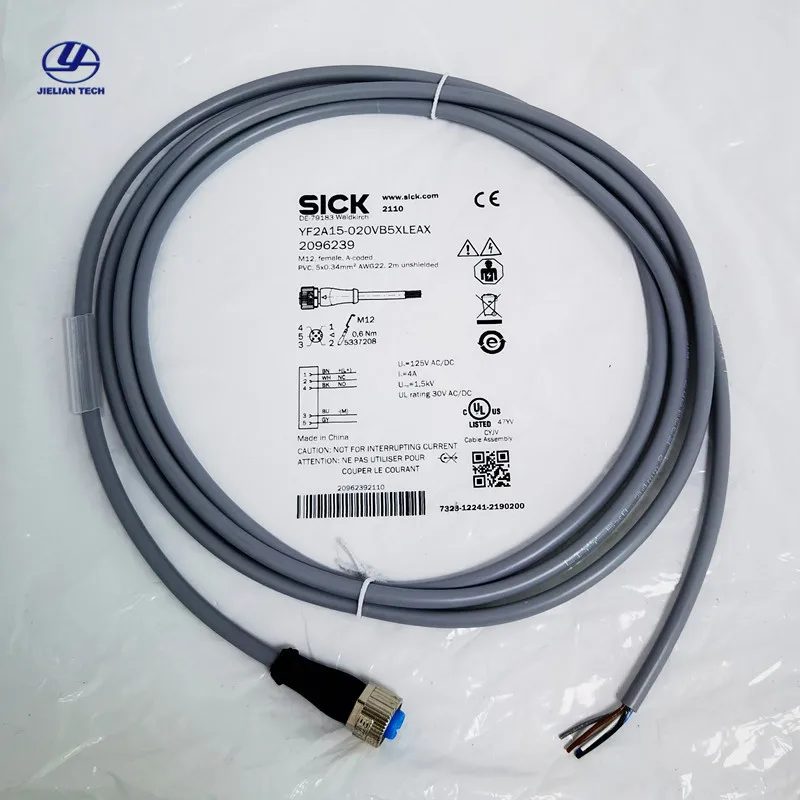

Connection : M12Plug,5pin
IP Rating : IP 67
Net weight : 400g
KT5-2 contrast sensors are ideal for high-precision contrast detection, such as for detecting marks on high-gloss ma-terials. Due to the 3-color LED technolo-gy, the sensors activate the best possible emitted light source for each contrast. In addition, the sensors feature application-specific teach-in processes. The sensor defines all necessary parameters auto-matically – either via the teach-in button on the device or via an external control cable. The sensor then determines the ideal switching threshold from the two gray values detected. High-precision contrast detection; automatic adaptation for high-gloss objects; sensing distances of 10 mm, 20 mm and 40 mm; a switch-ing frequency of 10 kHz; and individual alignment and mounting options make the device suitable for a wide range of tasks. Lastly, the 90° rotatable M12 plug provides simple mounting.
Your benefits:
1.All print marks and color combinations are reliably detected, ensuring high machine throughput
2.Reliable operation, even with jittering webs and high-gloss materials
3.High positioning accuracy improves packaging quality
4.Various sensing distances, light spot directions and light emissions make individual configuration and simple integration into the production process possible
Technical data:
SICK - Germany | |
1018044 KT5W-2P1116 | |
Range | 10mm +/- 3mm |
Connection | M12 Plug, 5 pin |
Output | PNP |
Light source | LED; red, green, blue |
Light spot size | 1.2mm x 4.2mm |
Light spot direction | Vertical |
Housing materials | Zinc diecast |
Protection | IP67 |
Operating voltage | 10-30Vdc |
Temperature | -10 °C~ +55°C |
Other features | 2-point Teach-in, static |
