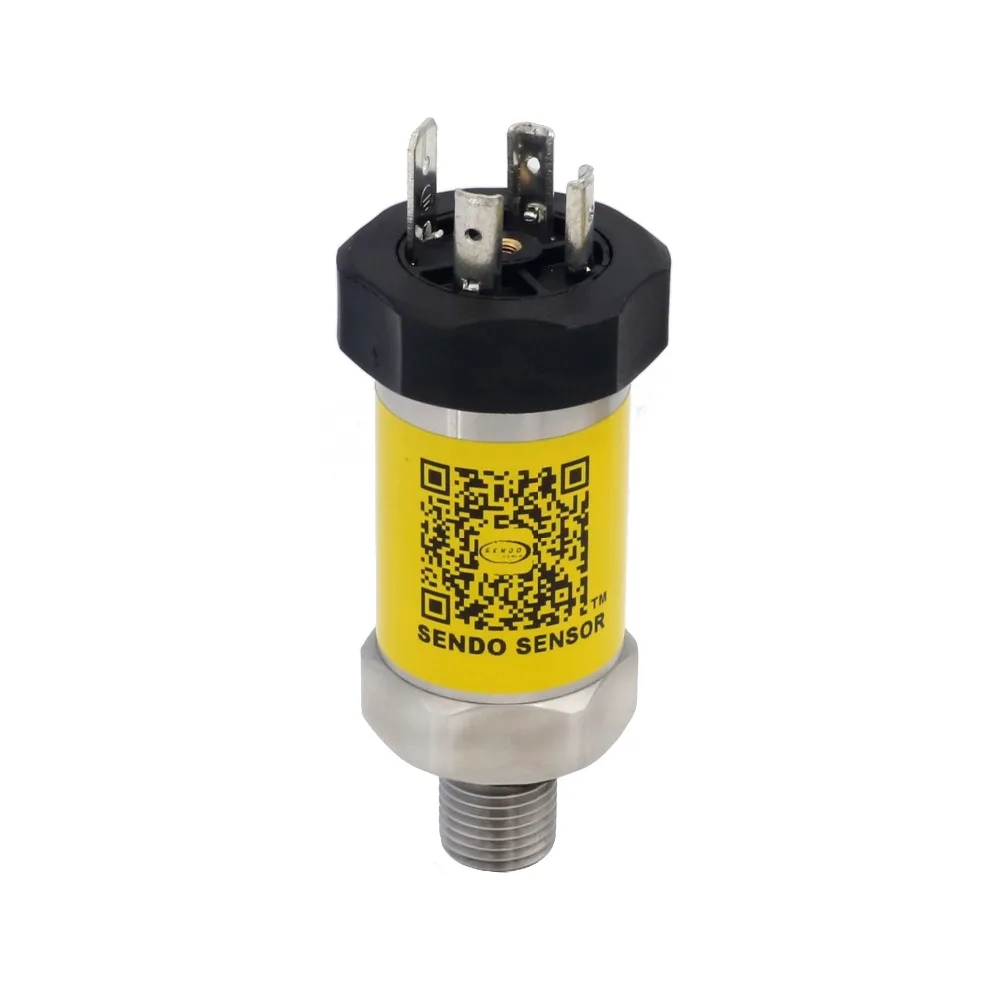

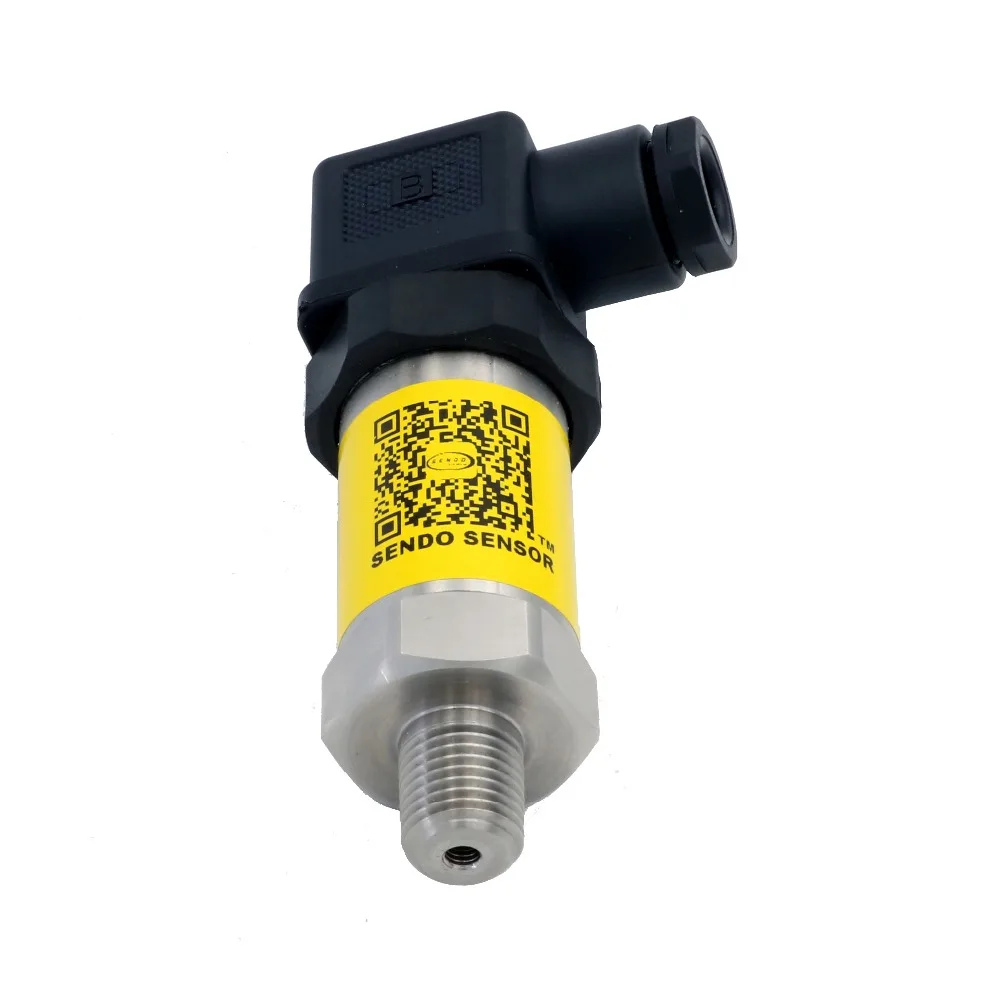

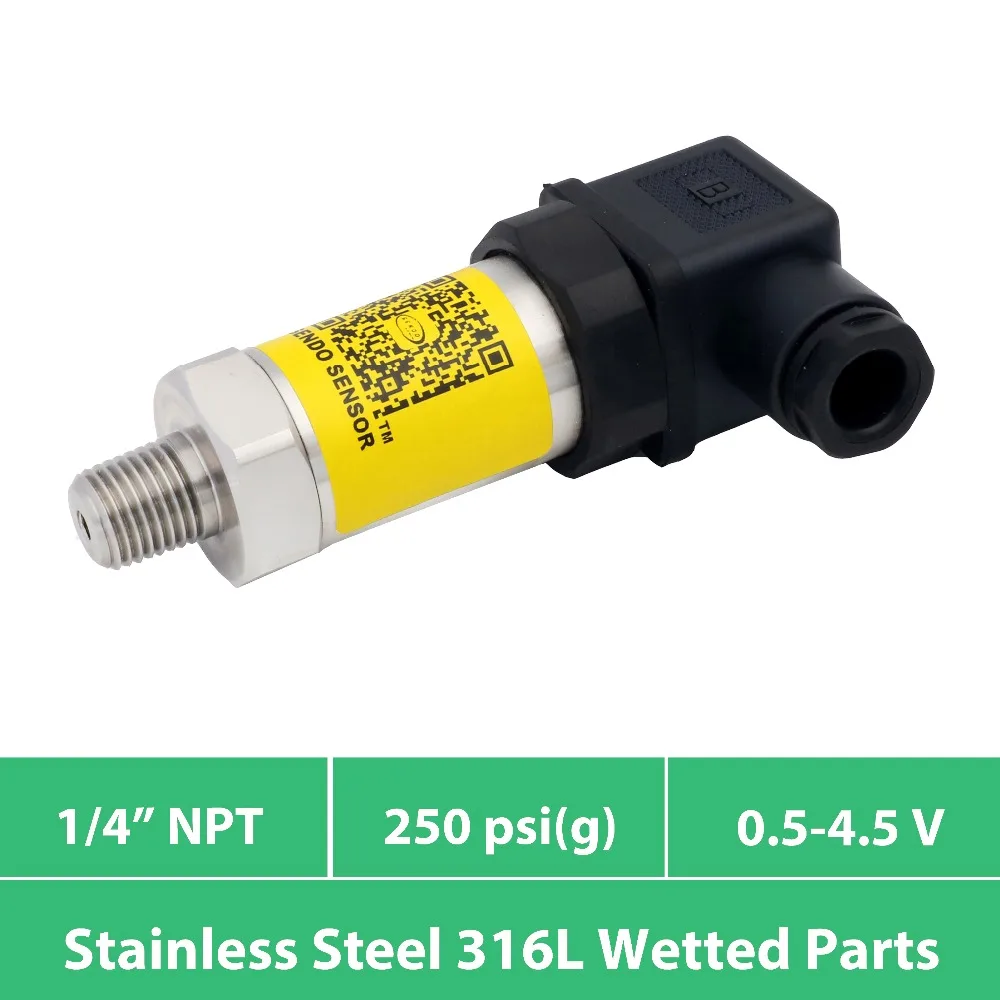

0 to 250psi media isolated pressure sensor 5V dc supply transducer output signal 0.5 4.5V 1 4 npt thread ss 316L diaphragm | Инструменты



Сохраните в закладки:

Цена:RUB
*Стоимость могла изменится

Количество:


Новое поступление

SENDO SENSOR Store

SENDO SENSOR Store

Магазина SENDO SENSOR Store работает с 05.03.2011. его рейтинг составлет 99.21 баллов из 100. В избранное добавили 349 покупателя. Средний рейтинг торваров продавца 5 в продаже представленно 2513 наименований товаров, успешно доставлено 782 заказов. 126 покупателей оставили отзывы о продавце.

Характеристики

0 to 250psi media isolated pressure sensor 5V dc supply transducer output signal 0.5 4.5V 1 4 npt thread ss 316L diaphragm | Инструменты

История изменения цены

*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Sep-18-2025 0.66 руб. 0.65 руб. 0 руб.
Aug-18-2025 0.75 руб. 0.85 руб. 0 руб.
Jul-18-2025 0.41 руб. 0.45 руб. 0 руб.
Jun-18-2025 0.5 руб. 0.48 руб. 0 руб.
May-18-2025 0.17 руб. 0.29 руб. 0 руб.
Apr-18-2025 0.18 руб. 0.1 руб. 0 руб.
Mar-18-2025 0.57 руб. 0.45 руб. 0 руб.
Feb-18-2025 0.57 руб. 0.4 руб. 0 руб.
Jan-18-2025 0.87 руб. 0.8 руб. 0 руб.

Описание товара

0 to 250psi media isolated pressure sensor 5V dc supply transducer output signal 0.5 4.5V 1 4 npt thread ss 316L diaphragm | Инструменты0 to 250psi media isolated pressure sensor 5V dc supply transducer output signal 0.5 4.5V 1 4 npt thread ss 316L diaphragm | Инструменты0 to 250psi media isolated pressure sensor 5V dc supply transducer output signal 0.5 4.5V 1 4 npt thread ss 316L diaphragm | Инструменты0 to 250psi media isolated pressure sensor 5V dc supply transducer output signal 0.5 4.5V 1 4 npt thread ss 316L diaphragm | Инструменты


Features

CE conformity Silicone oil filled
SS302H(1)
Reverse polarity protection Stainless steel 316L wetted parts


SS312 series is based and improved on SS302. Material of the wetted parts are stainless steel 316L and the updated electronic circuit(PCB) makes better stability and anti-interference, and also bring a new good feature: surge protection. Modularize manufacturing shorten production cycle. The feature of larger range of pressure, from 0.1-1000bar and application makes it widely used in many fields.



Co-related item

CODE MODEL PRESSURE VOLTAGE SIGNAL THREAD
302+14G0250P20M SS302+ 250psi gauge 9...30Vdc 4...20mA G1/4"
302+14N0250P20M SS302+ 250psi gauge 9...30Vdc 4...20mA 1/4"NPT
302+14G0250P10V SS302+ 250psi gauge 12...30Vdc 0...10V G1/4"
302+14N0250P10V SS302+ 250psi gauge 12...30Vdc 0...10V 1/4"NPT
302+14G0250P5V SS302+ 250psi gauge 12...30Vdc 0...5V G1/4"
302+14N0250P5V SS302+ 250psi gauge 12...30Vdc 0...5V 1/4"NPT
302+14G0250P4.5V SS302+ 250psi gauge 5Vdc 0.5...4.5V G1/4"
302+14N0250P4.5V SS302+ 250psi gauge 5Vdc 0.5...4.5V 1/4"NPT



Technical data

Supply Voltage

5VDC

Output Signal

0.5 to 4.5V

Pressure Range

250psi gauge

Proof Pressure

2.0*F.S.

Accuracy

0.5%F.S.

Stability

≤0.2%F.S./Year

Temp Coefficient

±0.03%F.S./°C

Response Time

≤4ms(90%F.S.)

Sealing Rating IP65


Environmental conditions

Medium temperature range

-20°C → +100°C

Ambient temperature range

-20°C → +80°C

Compensated temp range

0°C → +70°C

EMC - Emission

EN 61000-6-3

EMC - Immunity

EN 61000-6-1

Insulation resistance >100 MΩ at 250 V


Dimensions & Material

12


Electrical connections

4-20mA  (2 wire)

Pin1: + supply   Pin 2: + output

0-5V       (3 wire)

Pin1: + supply   Pin 2: GND   Pin3: + output

0-10V     (3 wire)

Pin1: + supply   Pin 2: GND   Pin3: + output

0.5-4.5V (3 wire)

Pin1: + supply   Pin 2: GND   Pin3: + output
