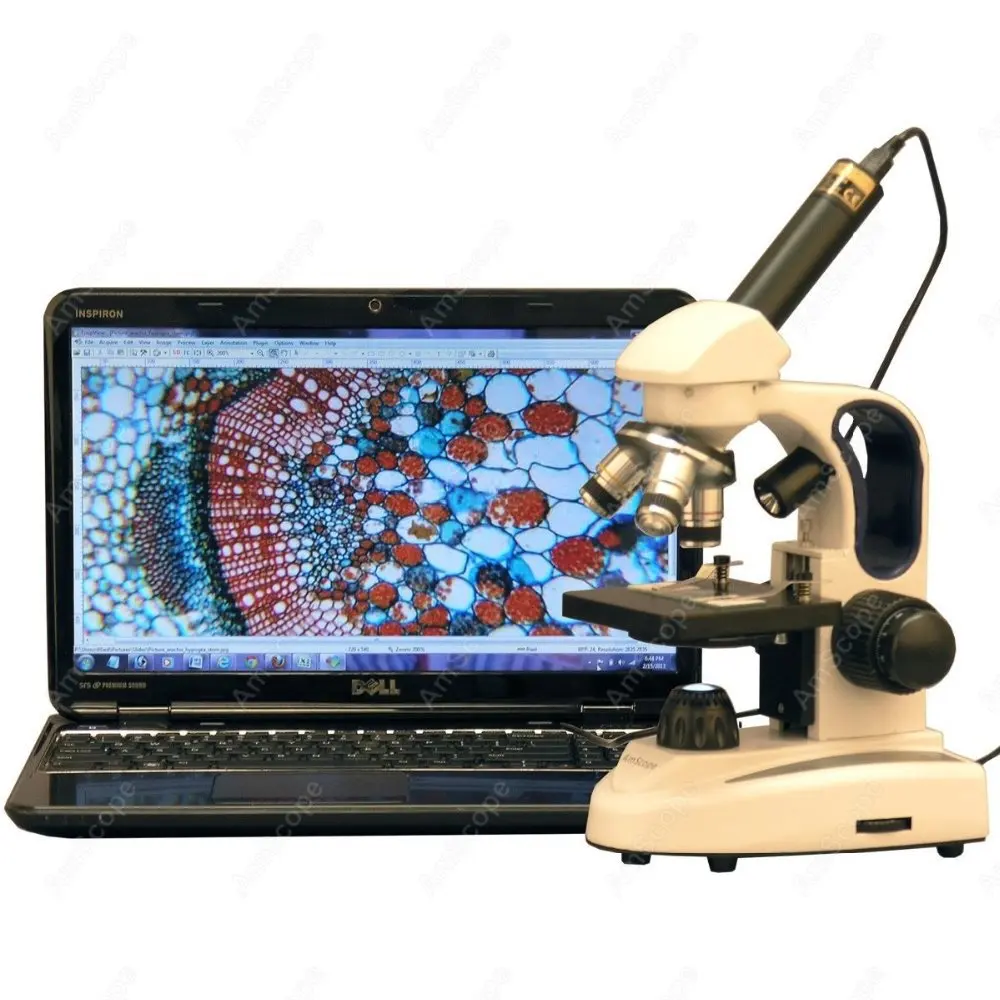

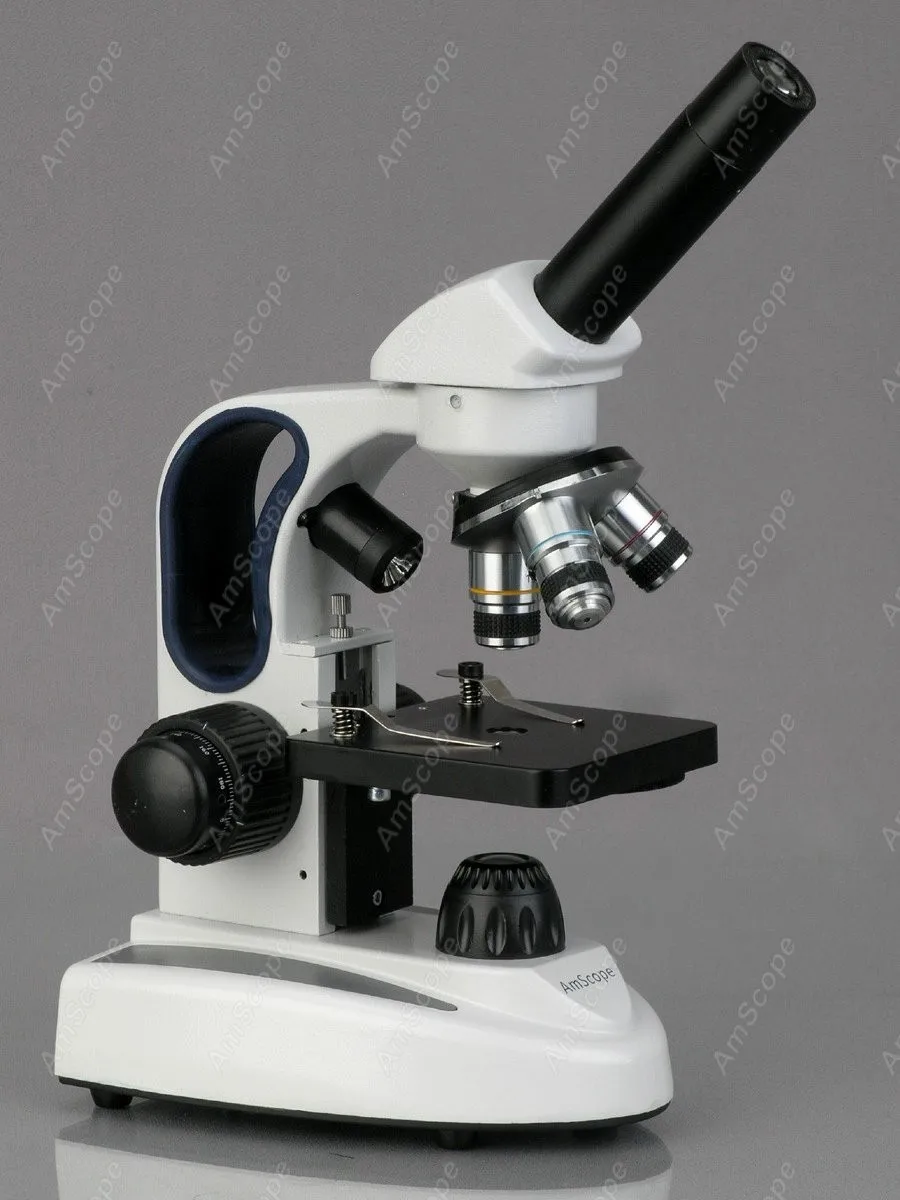

This high power digital microscope has an incident and transmitted illumination system. Designed for students to learn science, it comes with full optical glass elements, metal framework, 360 degree rotatable monocular head, coarse & fine focusing, 2MP USB digital camera, and top & bottom LED lights that use either an outlet (adapter included) or three AA batteries (or re-chargeable batteries). It can view transparent biological slides and/or opaque objects like stamps and coins. It offers five magnification settings, 40X, 100X, 250X, 400X and 1000X. The digital camera captures still images, streams live videos on your computer screen and is compatible with Windows XP/Vista/7/8, Mac OS X, and Linux. The user-friendly editing and processing software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), Video Recording and Measurement functions. Live video and image capture can be set in different resolutions simultaneously. You can edit and process image captures in a manner similar to PhotoShop. This is an ideal microscope for academics in home school and from students in elementary to high school. A microscope of this caliber is an excellent instrument for hobbyists. It comes brand new in a factory sealed box.

Features:

• A great affordable digital high power student microscope with top and bottom lights!
• Coaxial coarse & fine focusing
• 45 degree inclined 360 degree swiveling monocular head with locked-in eyepiece
• Built-in contemporary incident and transmitted LED illumination system
• Plain stage with clips and stain resistant finish
• High resolution offering sharp images
• Five levels of magnification: 40x-100x-250x-400x-1000x
• Single lens condenser and disc diaphragm
• Focusing control knobs on both sides
• All coated optical elements
• Precise ground glass lens
• Full metal mechanical components
• Solid metal frame with stain resistant enamel finish
• Manufactured under ISO 9001 quality control standard
• Excellent five (5) year factory warranty



  Specifications:

• Head: 45 degree inclined monocular
• Eyepiece: WF10x, 25x
• Objectives: 4x, 10x, 40x
• Condenser: single lens with 6-hole disc diaphragm
• Stage dimensions: 3-1/2" x 3-1/2"
• Illumination: LED, 1W, top and bottom
• Power supply: 110V/60HZ, 110V-4.5V DC power adapter included or 3 AA batteries (not included)



  camera specs:

• Resolution: 1600x1200 (approx. 2,000,000 pixels)
• Sensor size: 1/3.2" (4.73mm(h) x 3.52mm(v))
• Pixel size: 2.8μm x 2.8μm
• G Sensitivity: 1.0v / lux-sec(550nm)
• Frame rate: 5fps @1600x1200, 7.5fps @1280x1024 or 1280x960, 20fps @800x600, 30fps @other resolutions
• Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux
• PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port
• Advanced software for Windows:
  - offers stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - edit and process microscopy images in a manner similar to PhotoShop
  - live video and still image capture can be set in different resolutions simultaneously
• Life-time free software upgrades



  Packing List:

• Monocular microscope with top & bottom lights
• Objectives: 4x, 10x & 40x
• Widefield 10x eyepiece
• 25x eyepiece
• Dust cover
• Clips (pair)
• Outlet power adapter
• User microscope manual
• 2MP USB2.0 digital camera (imager)
• USB cable
• CD with software, driver and user's instructions for the camera
• Package dimensions: 15" x 10" x 6.5"
• Shipping weight: 5 lbs
