Specification:

• Brand new

• Type: Race receiver

• Number of Channels: 3

• Modulation: DSM2

• Band: 2.4GHz

• Size: As the picture show（color will be sent by randomly）

• Voltage Range: 3.5–9.6V

Binding:

• With the receiver off, insert the Bind plug into the Batt/Bind port in the receiver.

• Power the receiver. The amber LED will flash continuously, indicating the receiver is in Bind mode.

• Turn on the transmitter and make sure the transmitter shows the desired model number that you intend to use.

• Press the rolling selector to access the List screen.

• Rotate the roller to highlight the Bind screen and press the roller to access this screen.

• Rotate the roller to highlight BIND.

• With the steering wheel, throttle stick and Aux channel (if applicable) in the desired preset failsafe positions,

press the roller to initiate the bind process and to store the failsafe positions.

BIND will flash for a few seconds, then the transmitter will beep indicating the process is complete.

The LED on the receiver should now be solid indicating a successful bind has taken place.

• Remove the bind plug and store it in a convenient place.

Package Included:

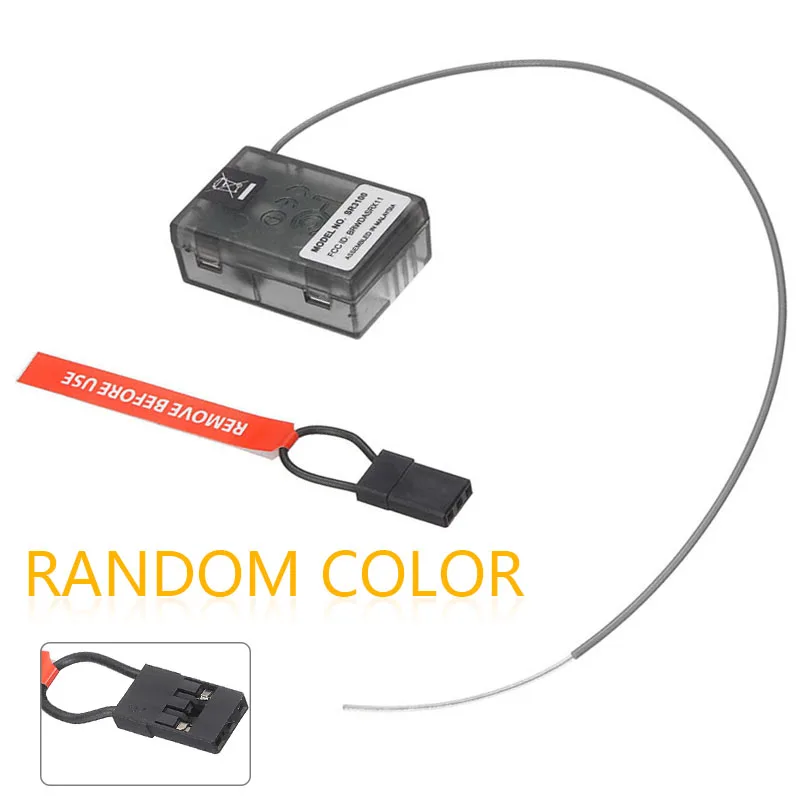

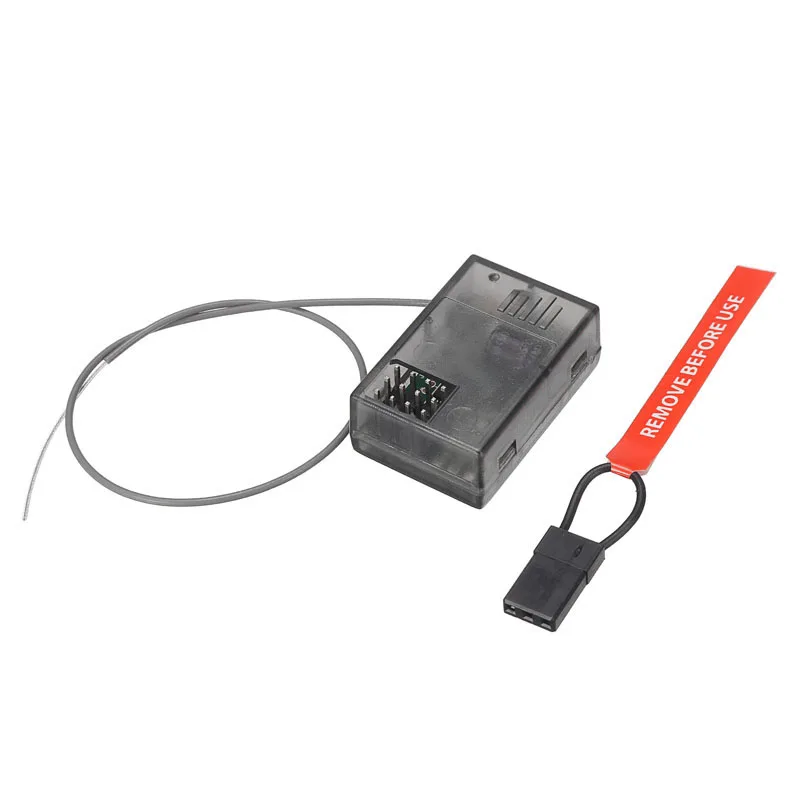

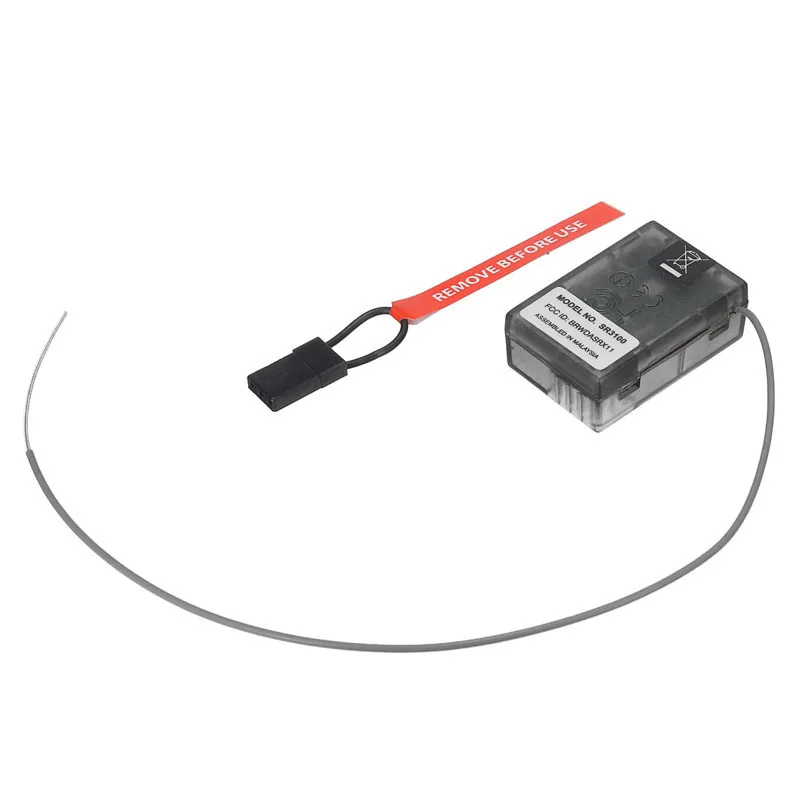

• 1x DSM2 Compatible 3CH Surface Receiver

• 1x Bind Plug

Note:

• Due to the hand measurement, there have size error about 1-5mm

• Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
